Description
Ultra-Lightweight Design
65mm wheelbase measures just 17.3g total weight. Air65 frame reduces mass to 2.67g effectively. Air canopy protects electronics completely. Brushless motors spin at 27000KV racing speed. Freestyle version runs 23000KV smoothly. Carbon fiber reinforcements add strength precisely. Indoor racing agility dominates tight spaces. Durability survives aggressive freestyle crashes.
Advanced 5-in-1 Controller
G473 processor powers lightning-fast response times. ICM42688P gyro delivers precise control always. Integrated ELRS 2.4GHz receiver binds easily. Built-in OSD displays flight data clearly. 5A ESC handles high current demands reliably. 400mW VTX transmits through obstacles. 16MB flash stores blackbox logs abundantly. Betaflight firmware tunes perfectly.
High-Performance Propulsion
0702SE II motors feature brass bushings for longevity. Racing props slice air at maximum thrust. Freestyle props provide smooth power delivery. 1S LAVA 260mAh battery lifts instantly. Flight times reach 4 minutes continuously. Z-folding battery design minimizes drag. Throttle response feels instantaneous always. Vertical performance defies gravity effortlessly.
C03 FPV Camera System
Ultra-clear C03 camera captures sharp video feed. Wide angle lens reveals full flight path. Low latency transmission maintains orientation. Analog 5.8GHz signal penetrates structures. VTX power adjusts from 25-400mW precisely. Goggles compatibility spans all major brands. FPV immersion transforms pilot experience dramatically. Night flights supported with HD clarity.
ExpressLRS 2.4G Protocol
ELRS receiver offers 1000Hz control link speed. Telemetry reports RSSI, battery voltage live. Long range performance exceeds 2km reliably. Dual antennas ensure signal diversity always. Binding process completes in seconds. Firmware updates via WiFi effortlessly. Interference rejection blocks 2.4G noise. Rock-solid connection defines pro-level flying.
Racing and Freestyle Tuned

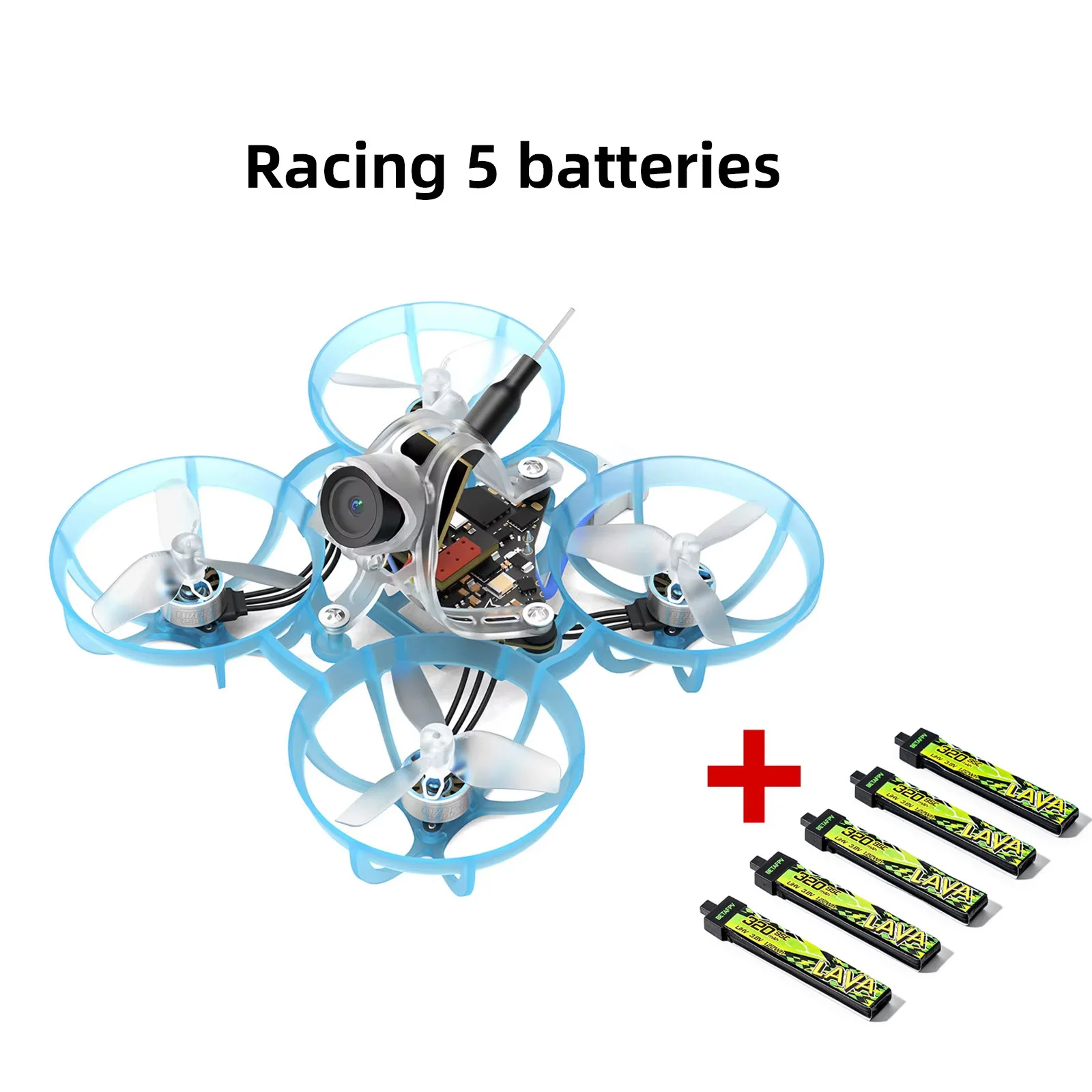

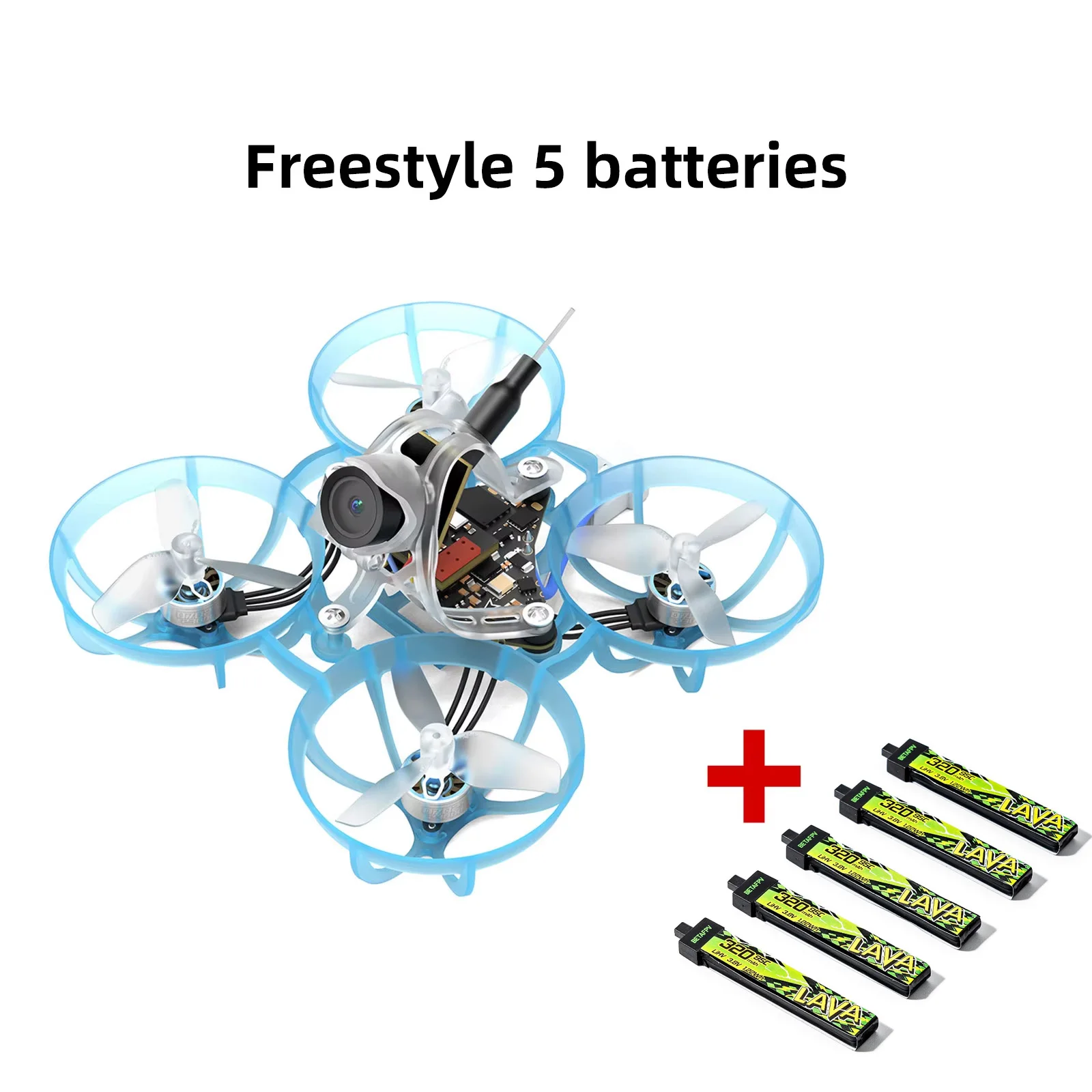

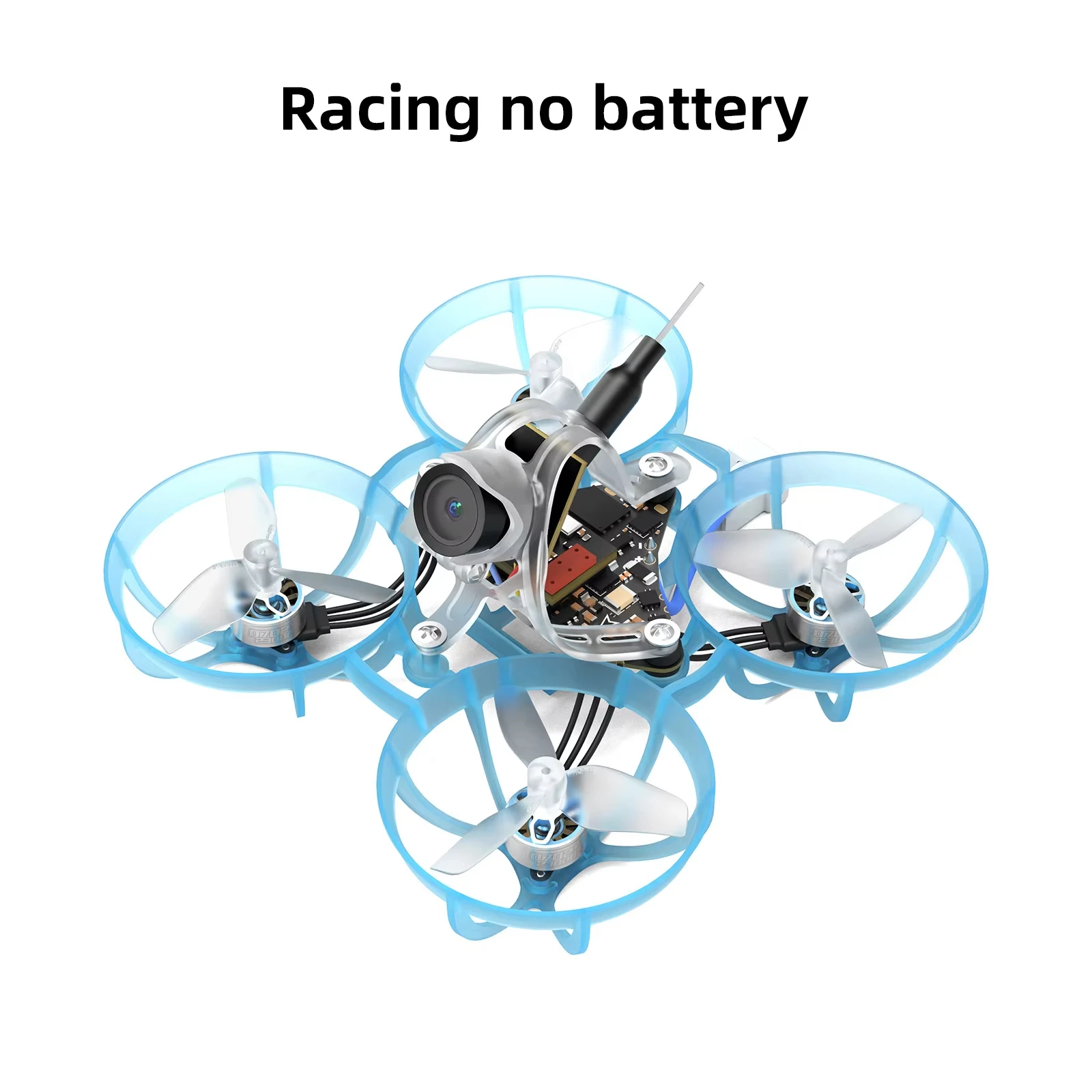

Racing version optimized for speed sprints. Freestyle rates enable cinematic flips smoothly. PID tuning perfected by Betaflight experts. Turtle mode recovers from flips automatically. Beeper locates drone after crashes easily. LED strips illuminate night sessions brightly. Custom colors personalize every quad. Professional performance suits all skill levels.
Indoor and Micro Spaces
65mm size navigates tight indoor environments. Whoop guards protect props completely. Wall-scraping precision defines micro racing. Freestyle flips inches from ceilings. Backyard racing thrills without open fields. Office gap navigation entertains coworkers. Apartment freestyle impresses guests instantly. Portability fits any pilot’s pocket.
Ready-to-Fly Experience
Bullet Points
-
Experience a New Level of Lightweight Racing and Freestyle Version Flying with our 1S 65mm Indoor Whoop. Weighing in at just 17.3g, it offers an exhilarating and agile flying experience.
-
Air Brushless Flight Controller (5IN1), the first 1S FC that features the G473 processor which has superior computing power, and is equipped with ICM42688P gyroscope. This all-in-one solution seamlessly integrates FC, ESC, OSD, Serial ELRS 2.4G RX and Onboard 5.8G 25mw~400mw VTX, while weighing just 3.6g.
- Racing/Freestyle Version Propulsion Systems have been upgraded to the 0702SE II motor, delivering a significant boost in performance. Specifically designed for the lightweight 65mm whoop, these systems provide an exhilarating flight experience tailored to meet the demands of every pilot.
- Discover the Air65, accompanied by the Z-Folding LAVA battery, enabling the ultimate lightweight flight experience. Take to the skies with unparalleled agility and weightlessness.
- Express your unique style with various part options. From 65mm frames to canopies and propellers, offering pilots a diverse selection of captivating colors. Combine with BETAFPV waterslide decals to effortlessly infuse your whoop drones with a personalized.
Specifications

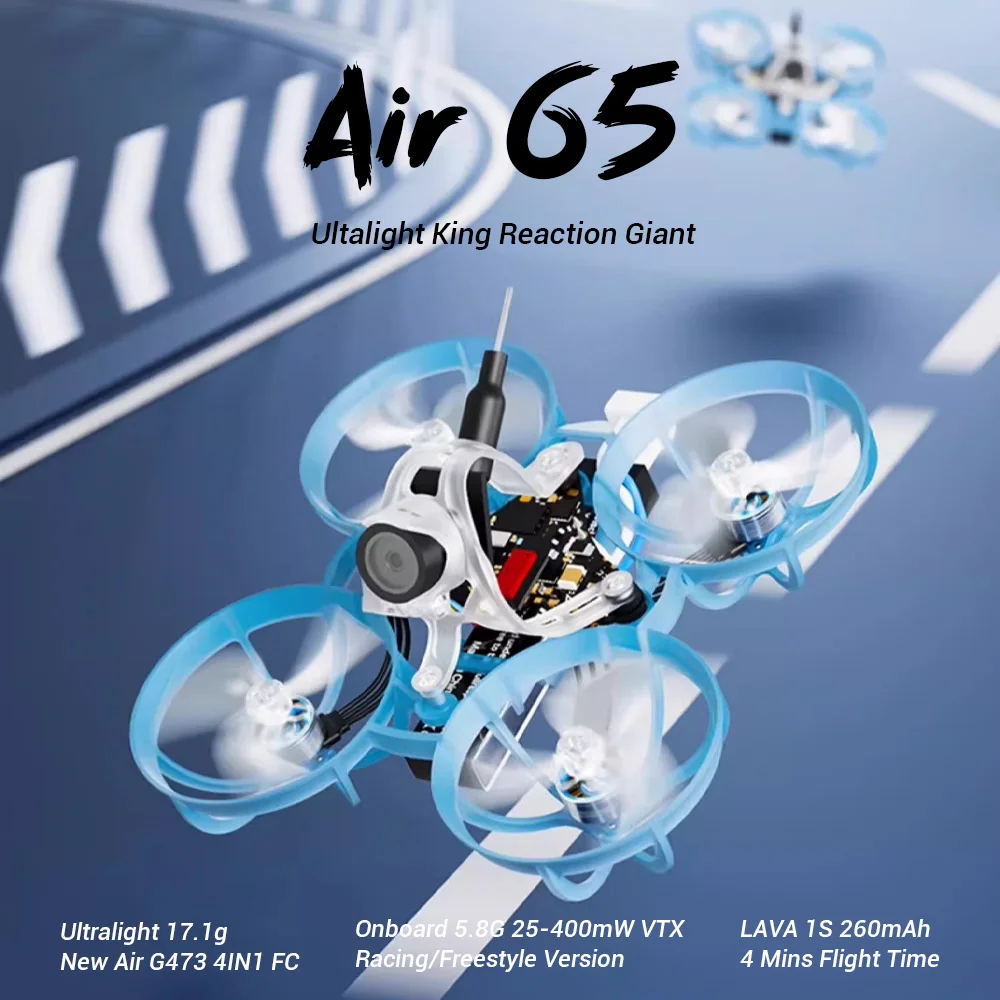

- Item: Air65 Brushless Whoop Quadcopter
- Weight: 17.3g (Racing & Freestyle Version), 17.4g (±0.15g) (Champion Version)
- Wheelbase: 65mm
- Frame: Air65 Frame
- Canopy: Air Canopy
- FC & ESC: Air Brushless Flight Controller (5IN1 Version)

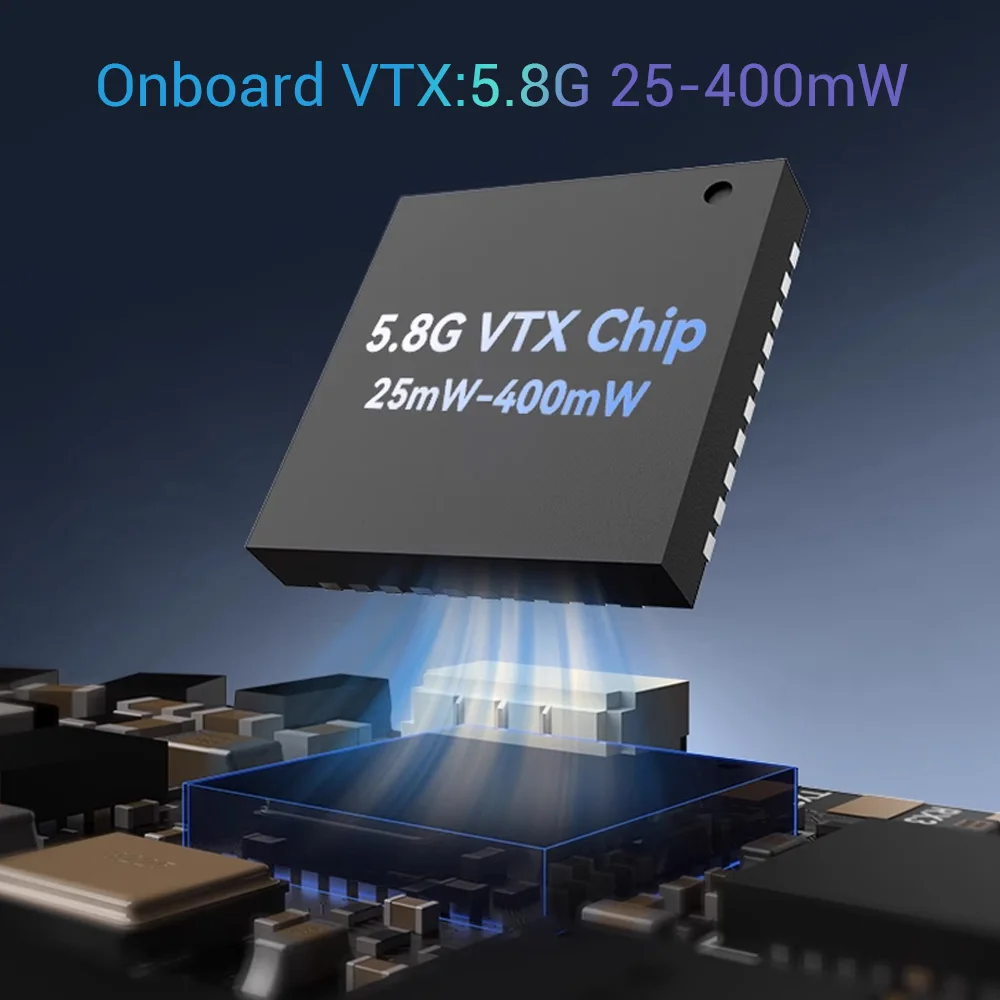

- VTX: Onboard 5.8G 25mw~400mw VTX
- Camera: C03 Camera
- Motor: 0702SE II|27000KV (Racing Version), 0702SE II|23000KV (Freestyle Version), 0702 II|30000KV (Champion Version)
- Props: GF 1219S 3B (Racing & Champion Version), HQ 31mm Ultralight (Freestyle Version)
- Battery Connector: BT2.0 U Cable Pigtail
- Recommend Battery: LAVA 1S 260/300mAh
- Flight Time (4.35V-3.3V): 4min (LAVA 260mAh)
- RX Version: Onboard ELRS 2.4G
Note: The Air65 is crafted for advanced pilots aiming to push the boundaries of FPV agility and racing flight performance. For newcomers to FPV or those flying for entertainment, the Meteor65 Pro is a better choice. It offers enhanced durability, requires no welding, and provides a more beginner-friendly experience.

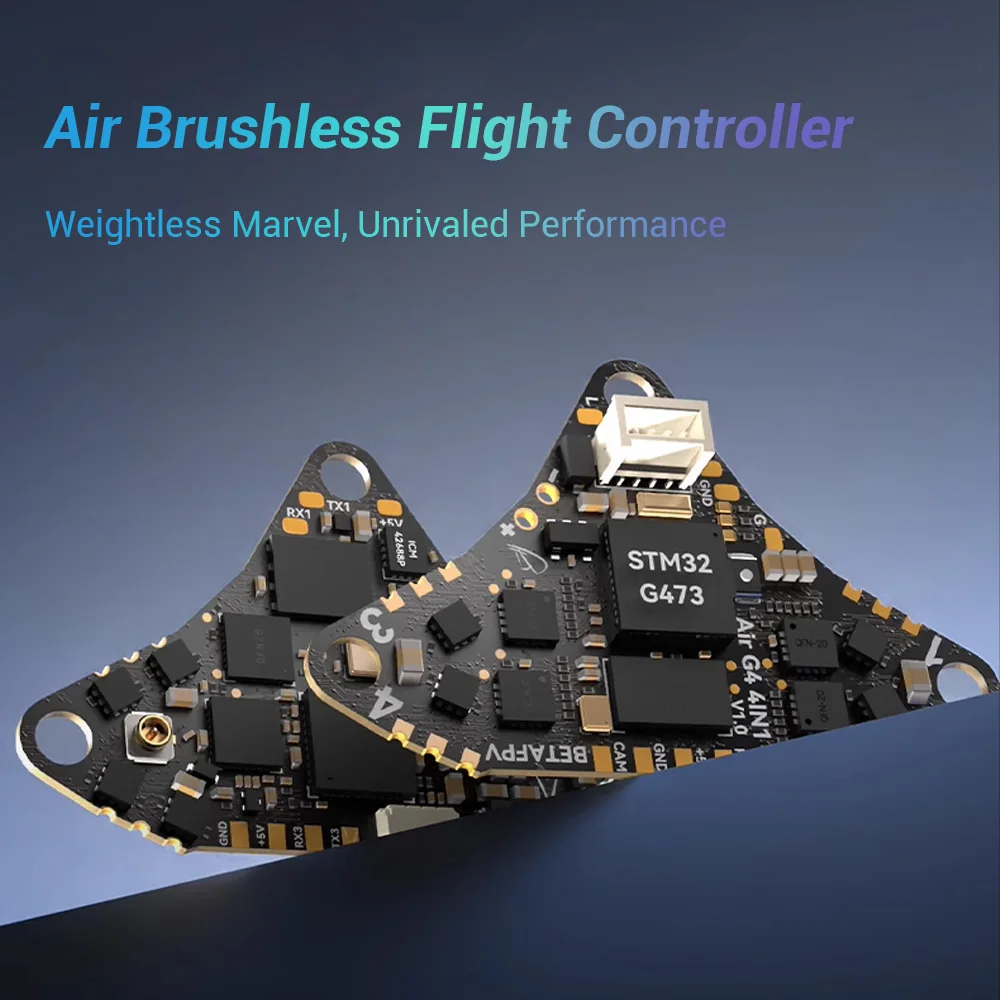

Flight Controller & ESC
The Air65 is now equipped with the Air Brushless Flight Controller (5IN1), featuring the advanced G473 processor, which provides superior computing power and lightning-fast response times—a significant upgrade over the F411 used in the Meteor65. Weighing just 3.6g, it integrates FC, ESC, OSD, VTX, and RX into a compact design, simplifying setup and maintenance while striking the perfect balance between performance and lightness. Powered by the industry-leading ICM42688P gyroscope and a custom micro-sized OSD chip, the Air65 delivers smoother, more responsive control. With multiple UART ports for flexible function expansion, the Air65 is designed for seamless integration into both racing and freestyle FPV, offering unmatched precision and fingertip control.
Upgraded Air Canopy
Experience high-quality, clear, and sharper images with the lightweight C03 FPV Micro Camera, weighing just 1.45g. We’ve redesigned the Air Canopy structure to be more flexible, impact-resistant, and durable. The improved bending effect enhances flexibility, reduces the chances of breakage, and greatly enhances explosion resistance for easier installation. Effortlessly accommodates an assortment of Micro and Nano Analog cameras. Supporting angle adjustment from 25° to 50°. With it, Air65 can chase the limit of freestyle and racing victory worry less.
Propulsion System
Powered by the upgraded 0702SE II Brushless Motors, Air65 takes propulsion and performance to new heights. Whether it’s the Racing or Freestyle Version, the Air65 is designed to maintain exceptional agility and precision, perfectly suited to conquer racing tracks or freestyle flights with ease.
The Racing Version now boasts a 12.7% thrust-to-weight ratio boost, reaching 5.82:1 with 0702SE II|27000KV Motors for explosive speed. The Freestyle Version sees a 13% improvement to 5.26:1 with 0702SE II|23000KV Motors, offering fluid control and precise movements. Paired with lightweight GF 1219S 3B and HQ 31mm 3B props, it excels in both speed and maneuverability.

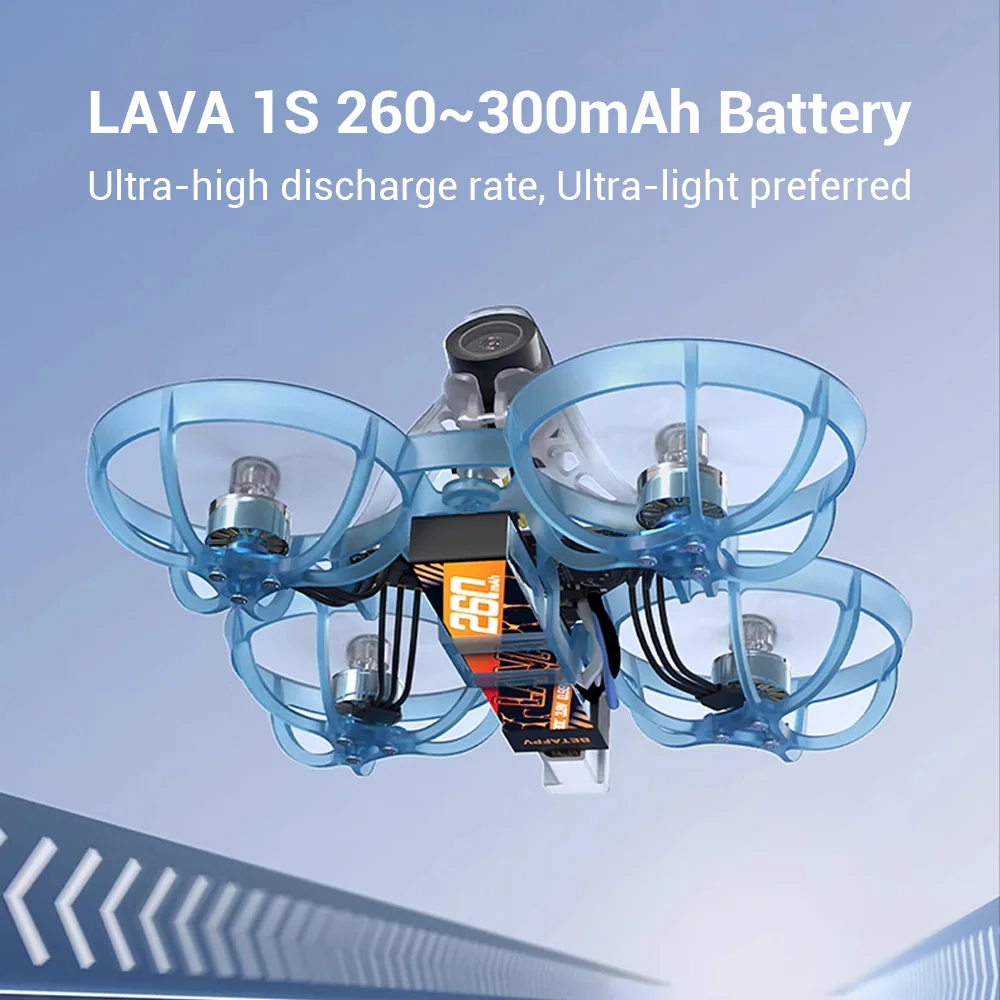

The Ultralight LAVA 1S 260/300mAh Battery is a compact premier for Air65. With more concentrated center gravity, it offers crisper response, greater acceleration, and enhanced maneuverability. Featuring the groundbreaking Z-Folding Process, this LiHV battery exceeds conventional capacity and discharge thresholds. And equipped with the BT2.0 U Cable Pigtail, saying goodbye to folding cables, for easy plugging and an extended lifespan. Lighter weight by reducing pigtail length. Achieve the ultimate lightweight choice for drone racing or freestyle.
Air65 Frame
To enhance the flying experience, DIY enthusiasts have diligently worked on reducing the weight of the 65mm whoop drones, especially frames for an ultra-light structure. We upgraded the Meteor65 Micro Frame to the Air65 Frame, which achieves a remarkable weight lighter from 3.64g to 2.67g. It maintains exceptional strength and durability while introducing a new motor fixed slot, and optimizing a low-profile design. Having 6 color choices, it indisputably emerges as the top topgallant choice for pilots seeking an unparalleled ultra-light Sub18g 65mm 1S Whoop drone and personality.
Recommended Parts
- Radio Transmitter: LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE
- FC: Air Brushless Flight Controller (5IN1)
- Battery: LAVA 1S 260mAh 80C Battery, LAVA 1S 300mAh 75C Battery
- Props: HQ 31mm Ultralight 3B Props, GF 1219S 3B Props
- Motor: 0702SE II Brushless Motors
- Colorful Frame: Air65 Brushless Whoop Frame
- Colorful Canopy: Air Canopy
- Screws: Meteor Series Motor Fixing Screws Pack (40PCS)
- Sticker: BETAFPV Waterslide Decals

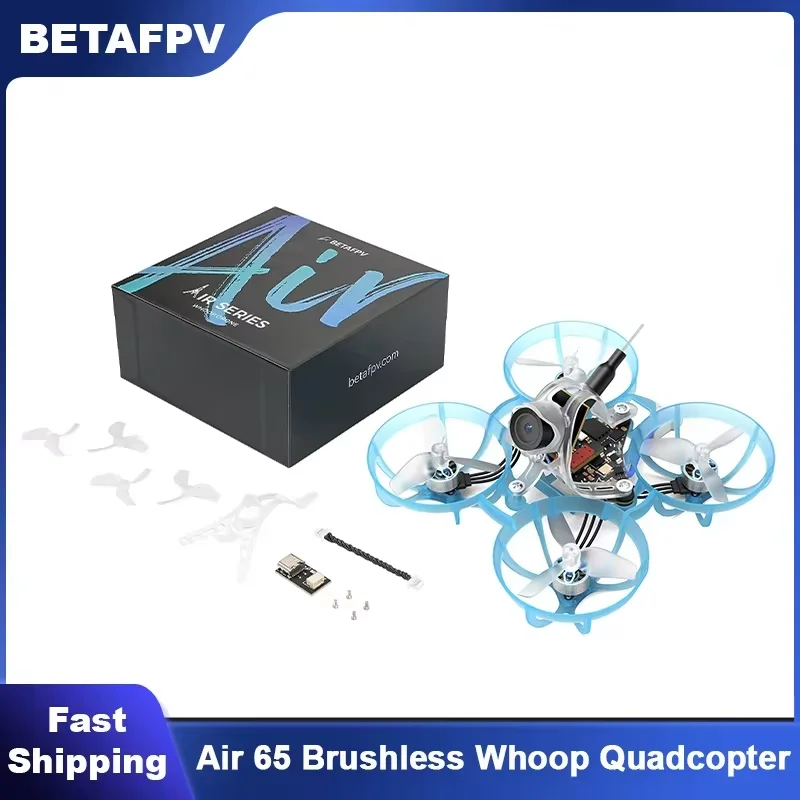

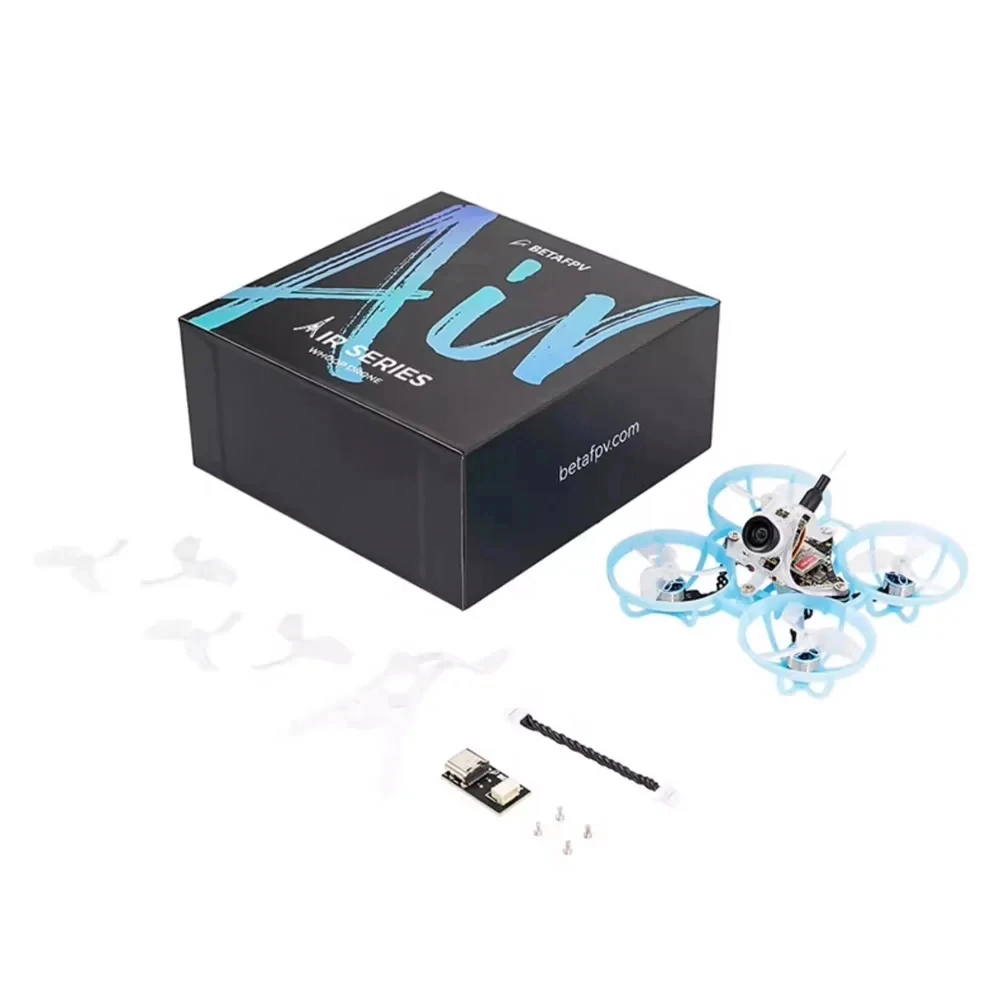

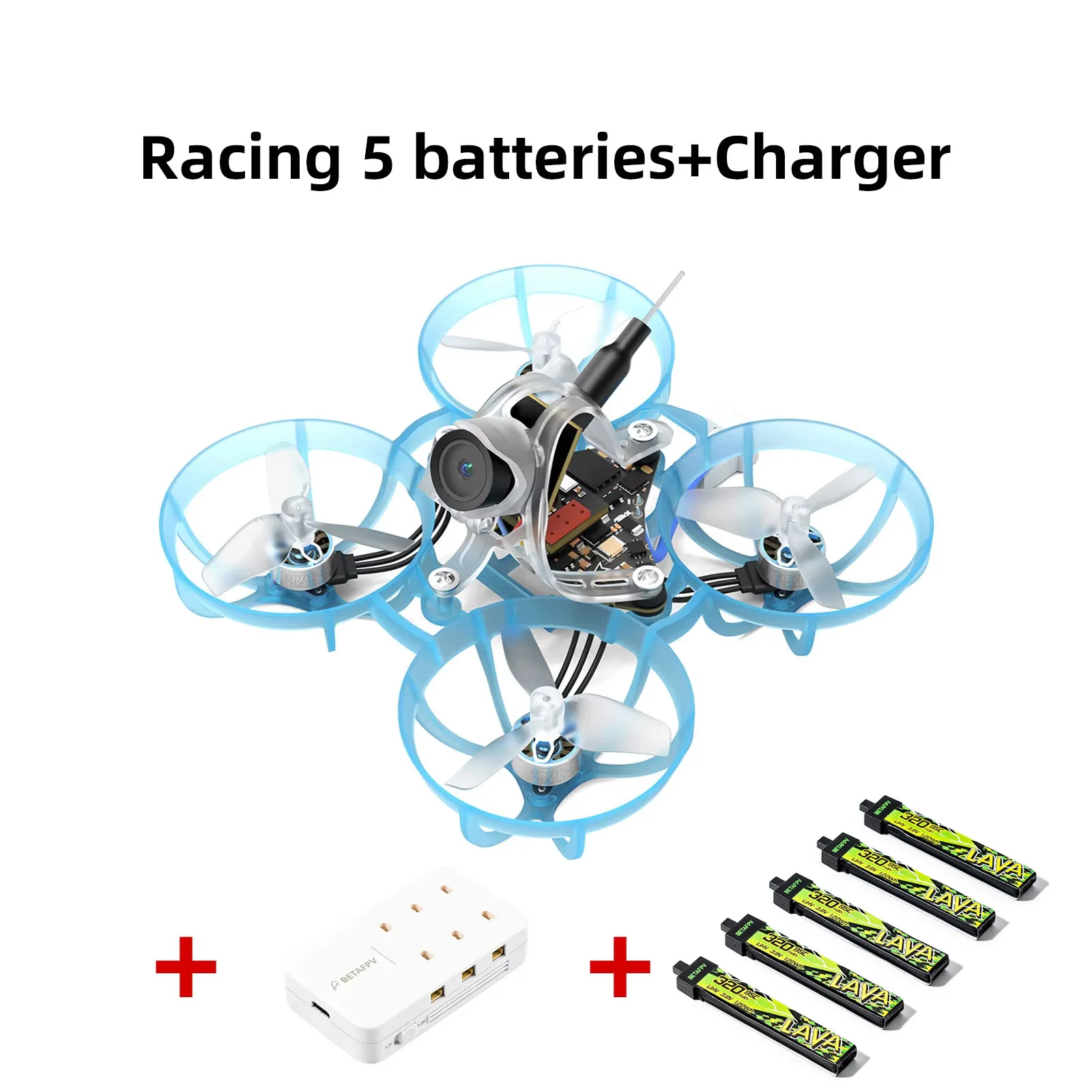

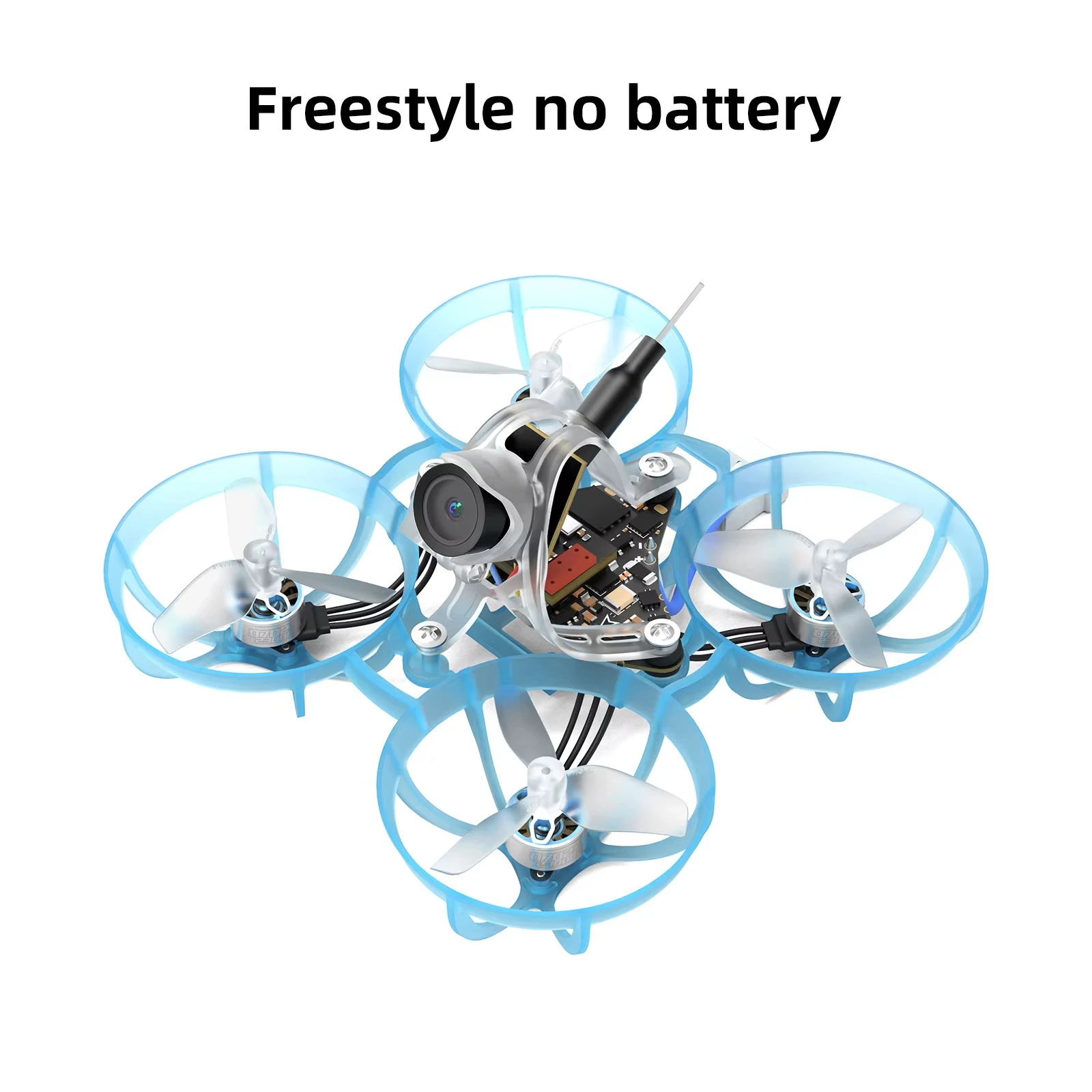

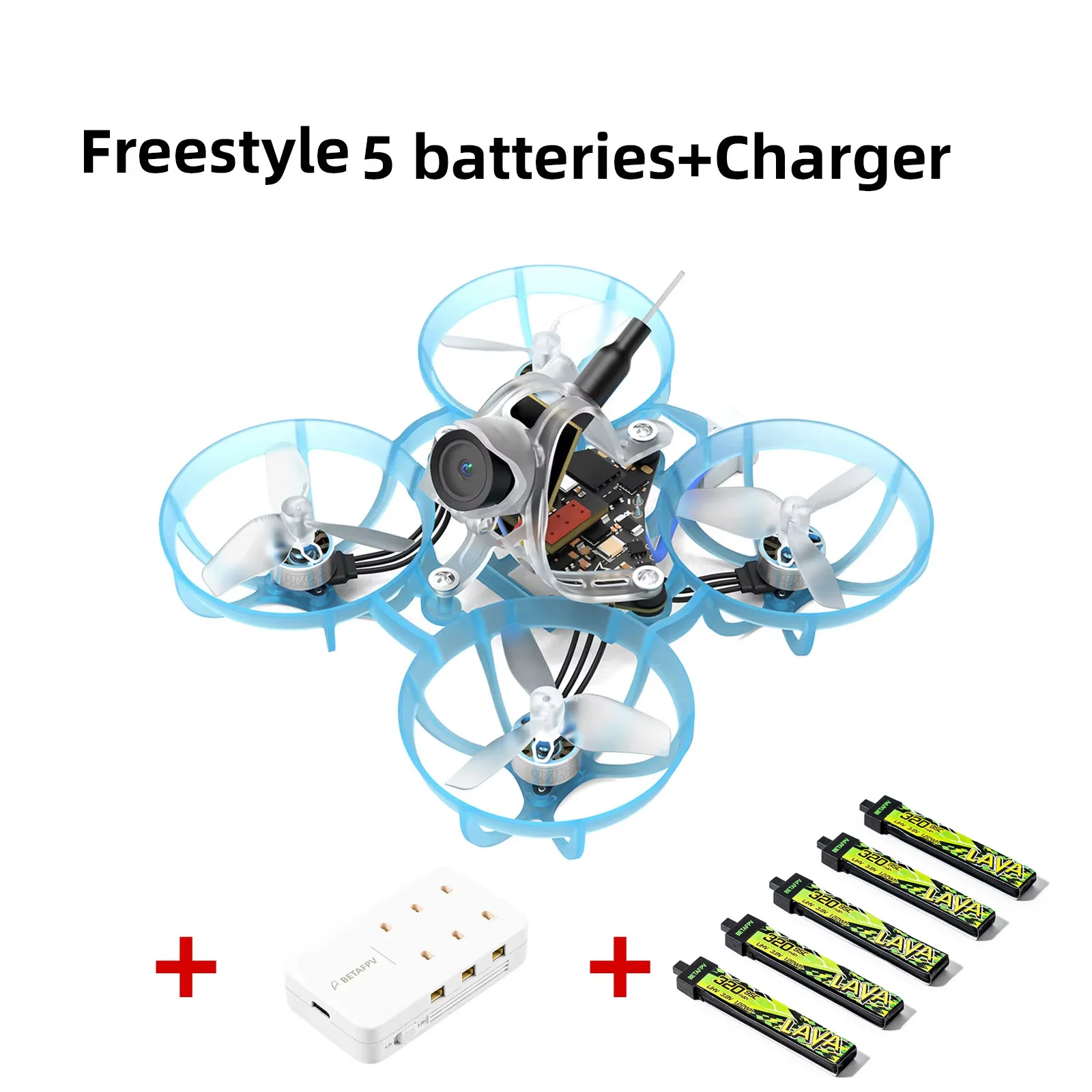

Package
- 1 * Air65 Brushless Whoop Quadcopter
- 1 * Air Canopy
- 4 * GF 1219S 3B Props (Racing Version) / HQ 31mm Ultralight 3B Props (Freestyle Version)
- 1 * Pack of Screws
- 1 * 4Pin Adapter Cable
- 1 * USB Type-C Adapter Board
